Features

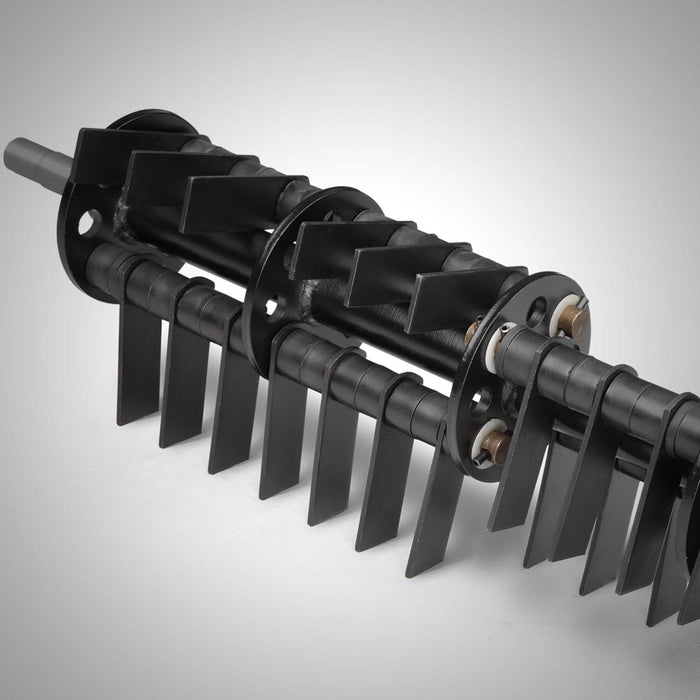

Carbon Steel Swing Tip Blades

Carbon Steel Swing Tip Blades

Hardened swing tip blades remove moss and thatch efficiently while helping protect the machine from impacts with hidden obstacles.

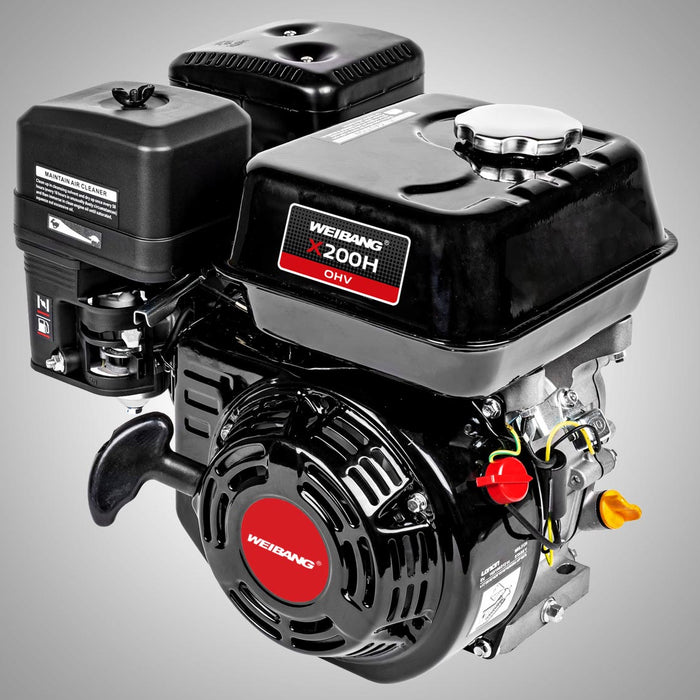

Weibang X200H Engine

Weibang X200H Engine

Professional 196cc horizontal shaft engine providing dependable performance for demanding scarifying work.

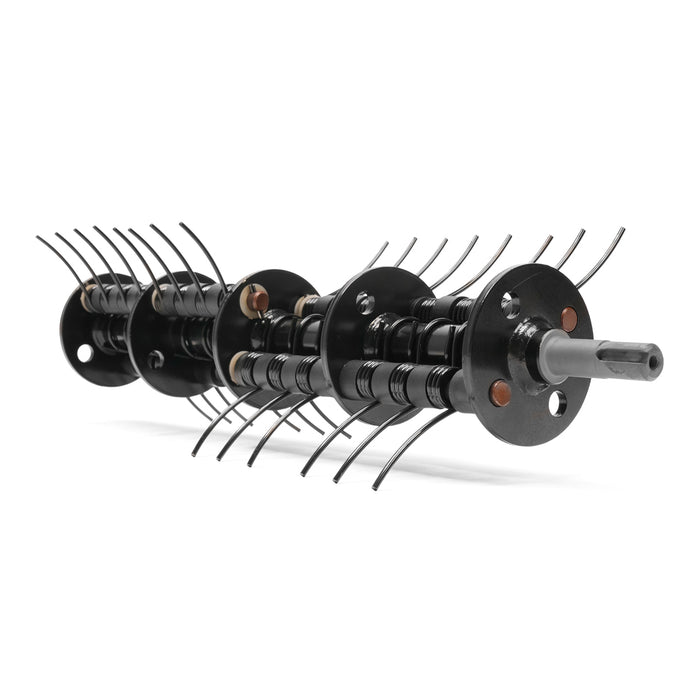

Optional Spring Tine Cassette

Optional Spring Tine Cassette

Convert the machine for lighter surface raking when conditions don't require full scarification.

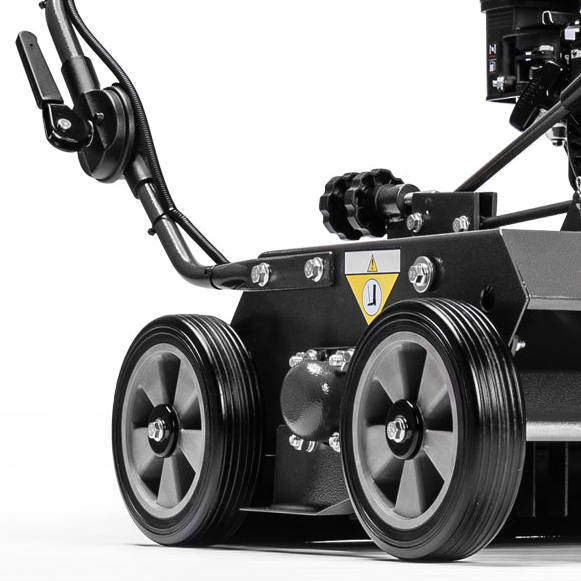

Infinite Height Adjustment

Infinite Height Adjustment

Allows precise adjustment of the working depth to suit varying lawn conditions throughout the season.

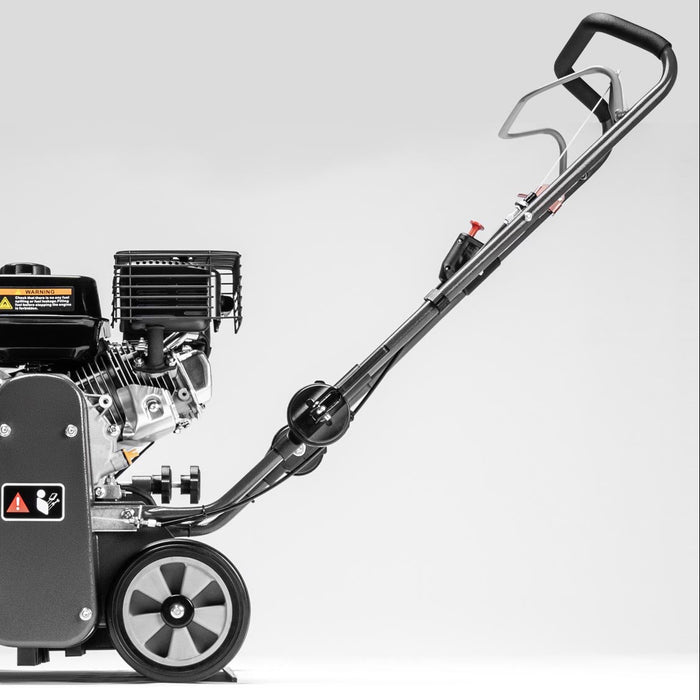

Adjustable Quick-Release Handlebars

Adjustable Quick-Release Handlebars

Height-adjustable handlebars improve operator comfort and fold quickly for transport or storage.

Transport Position

Raises the blades clear of the ground, making it easier to move safely between work areas.

Product Information

Description

Regular scarifying helps improve turf health by removing moss and thatch, allowing air, water and nutrients to reach the root zone more effectively.

Height-adjustable quick-release handlebars improve operator comfort and fold down for transport and storage, while the 40-litre collector helps reduce clean-up time by gathering removed moss and debris during operation.

  • Additional Information
  • Suitable for areas up to 2,000m²
  • Transport mode
  • Quick-release adjustable handlebars
  • Nylon wheels with polyurethane tyres

Specifications

Power & Engine

Power Source Petrol
Engine Brand Weibang
Engine Model X200H
Power Output 4.1kW
Engine Capacity 196cc
Fuel Type Petrol
Fuel Tank Capacity 3.1L
Start Type Recoil

Drive & Control

Operation Push
Wheels Nylon / Polyurethane 20cm

Working Capacity

Working Width 38cm (15")
Working Depth 14mm
Maximum Area Coverage Up to 2000m²
Collection Capacity 40L

Cutting System

Cutting Points 22 Swing Tip Blades (Optional Spring Cassette)
Height Adjustment Positions 22mm Infinite Adjustment

Air & Blowing

Pressure & Water

Robotic Technology

Compatibility & System

Dimensions & Weight

Dimensions 115 × 56.5 × 104cm
Folded Dimensions 80 × 56.5 × 64.5cm

Operator Information

Vibration Level 11m/s²
Noise Level 96dB(A)
Handle Type Quick Release Adjustable

Safety & Protection

Product Details

Material Steel
Warranty 1 Year Commercial
