Product Information

Description

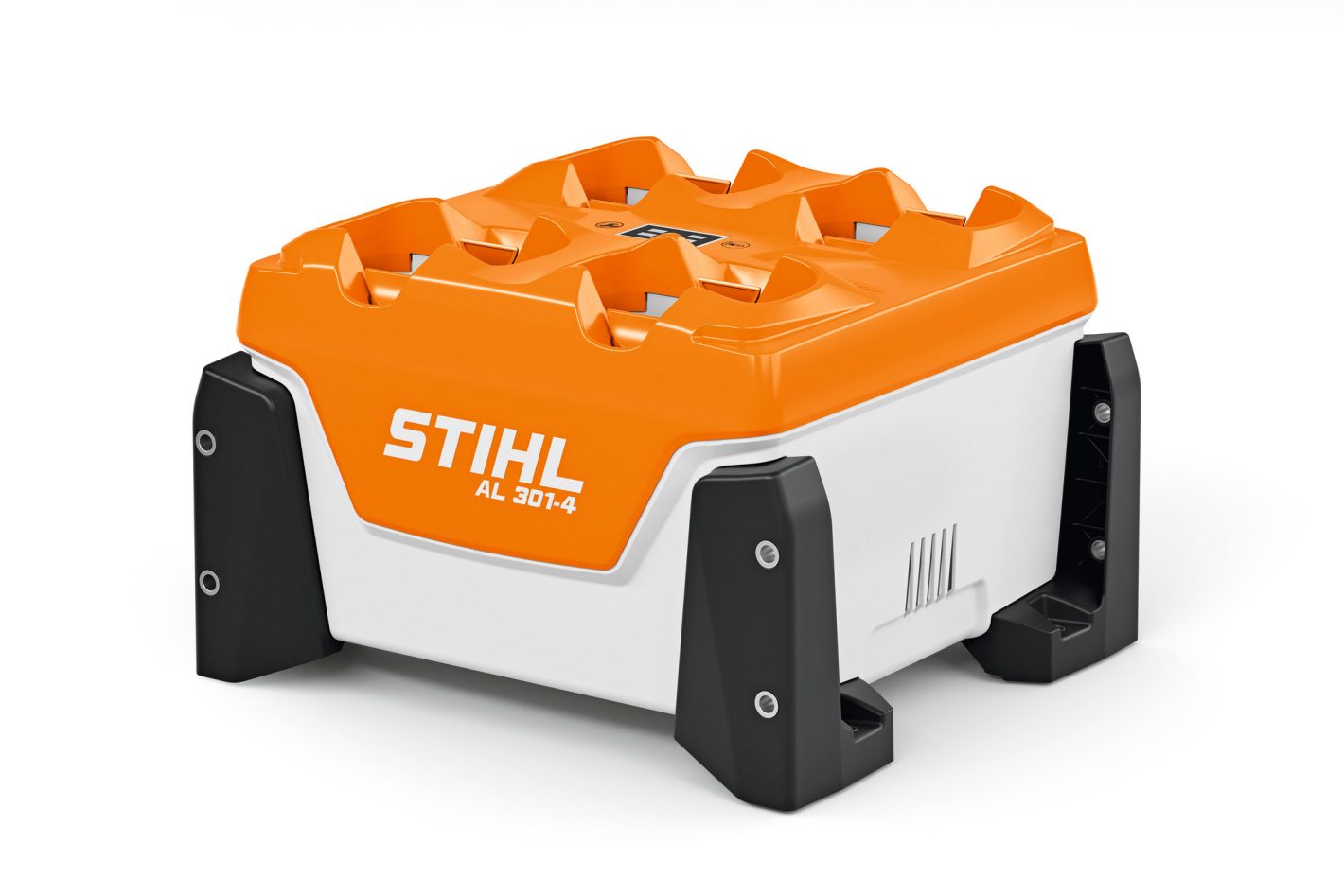

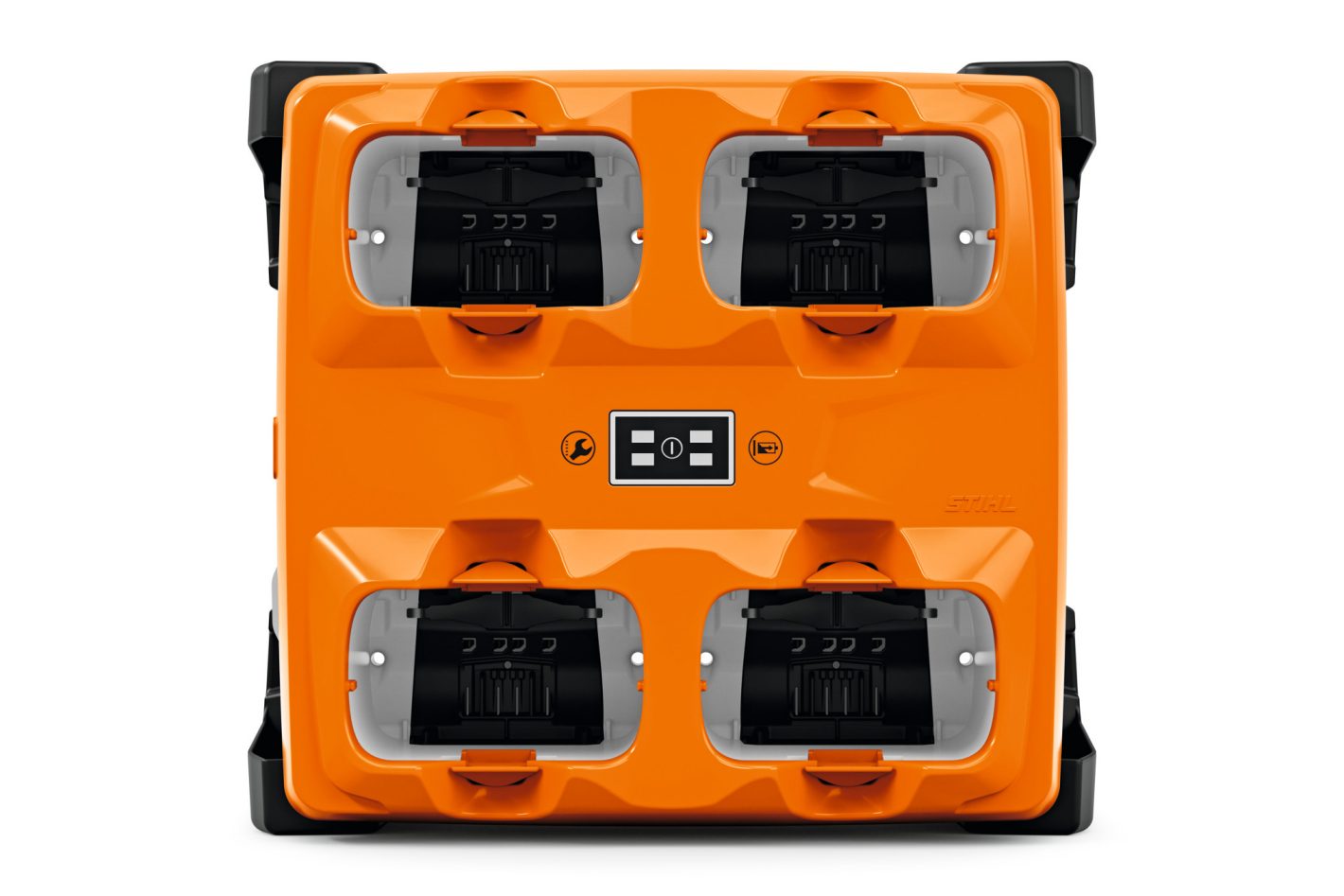

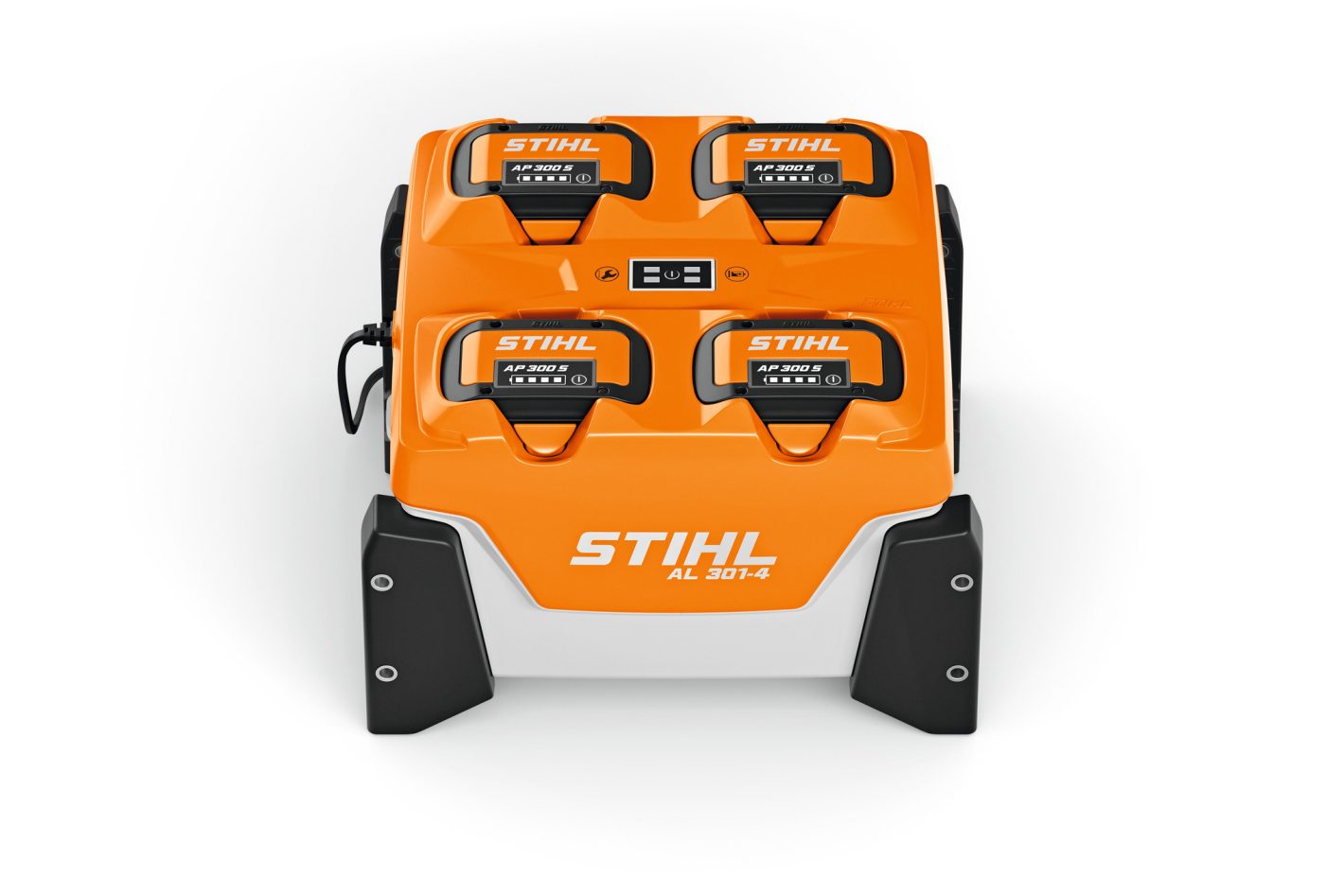

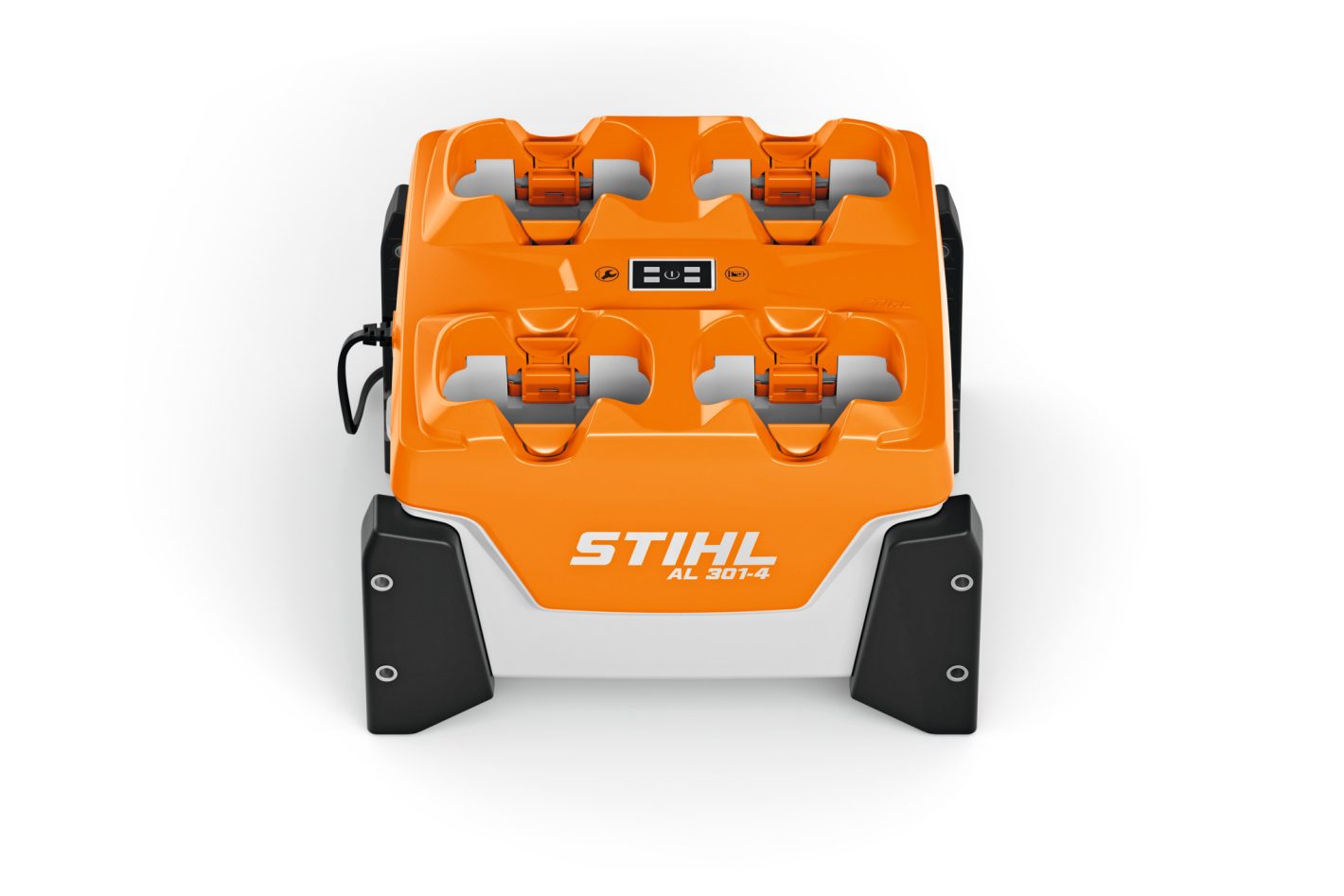

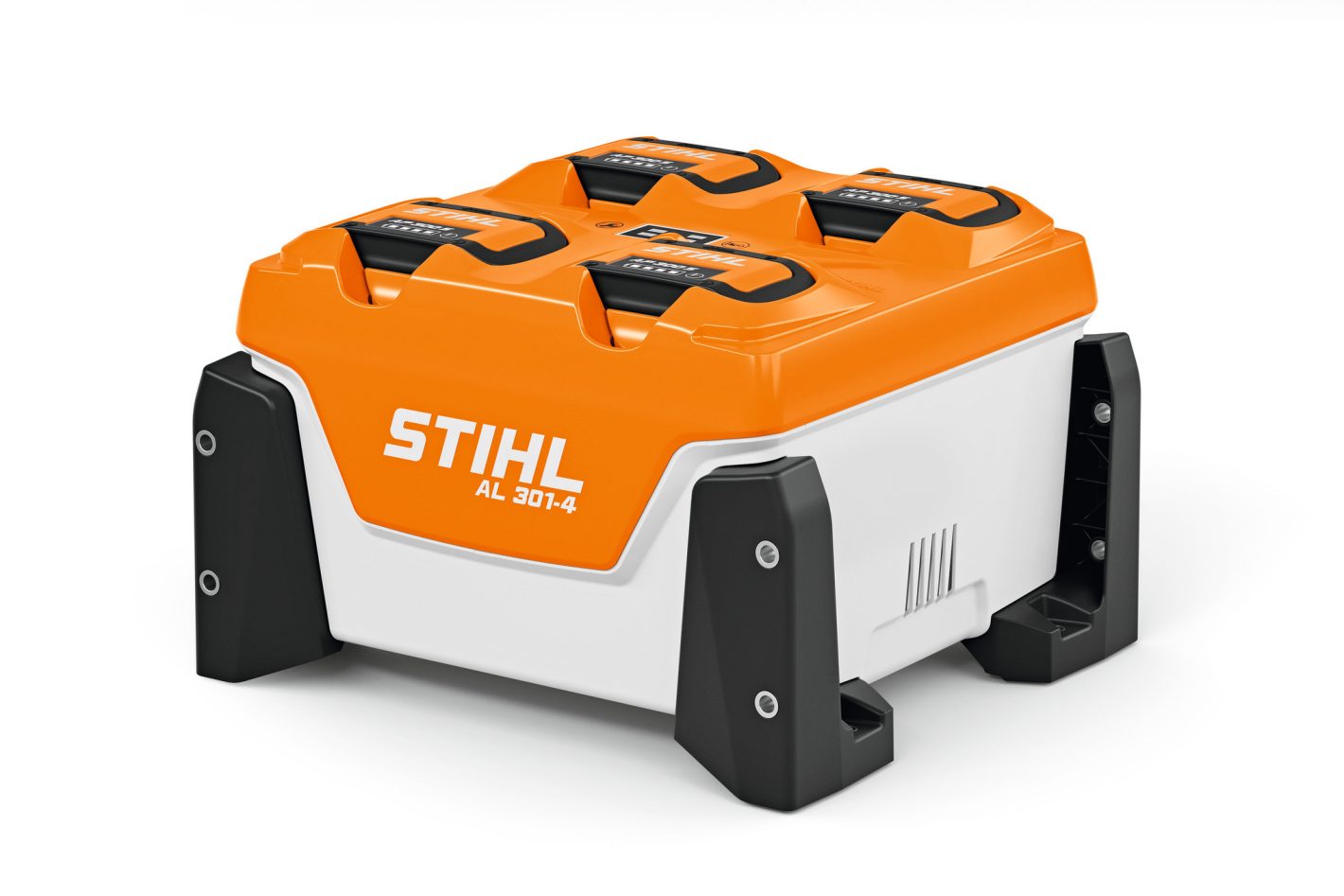

230V. Multiple battery charger for sequential charging of up to 4x AP batteries or AR L batteries (AR L connecting cable & adapter required).

This AL 301-4 has a 6.5 A charging current for fast recharge times and a built-in fan for active battery cooling. It automatically switches off when the battery is fully charged to prevent overcharging. And it has an LED indicator which shows you when the battery is charging or is fully charged.

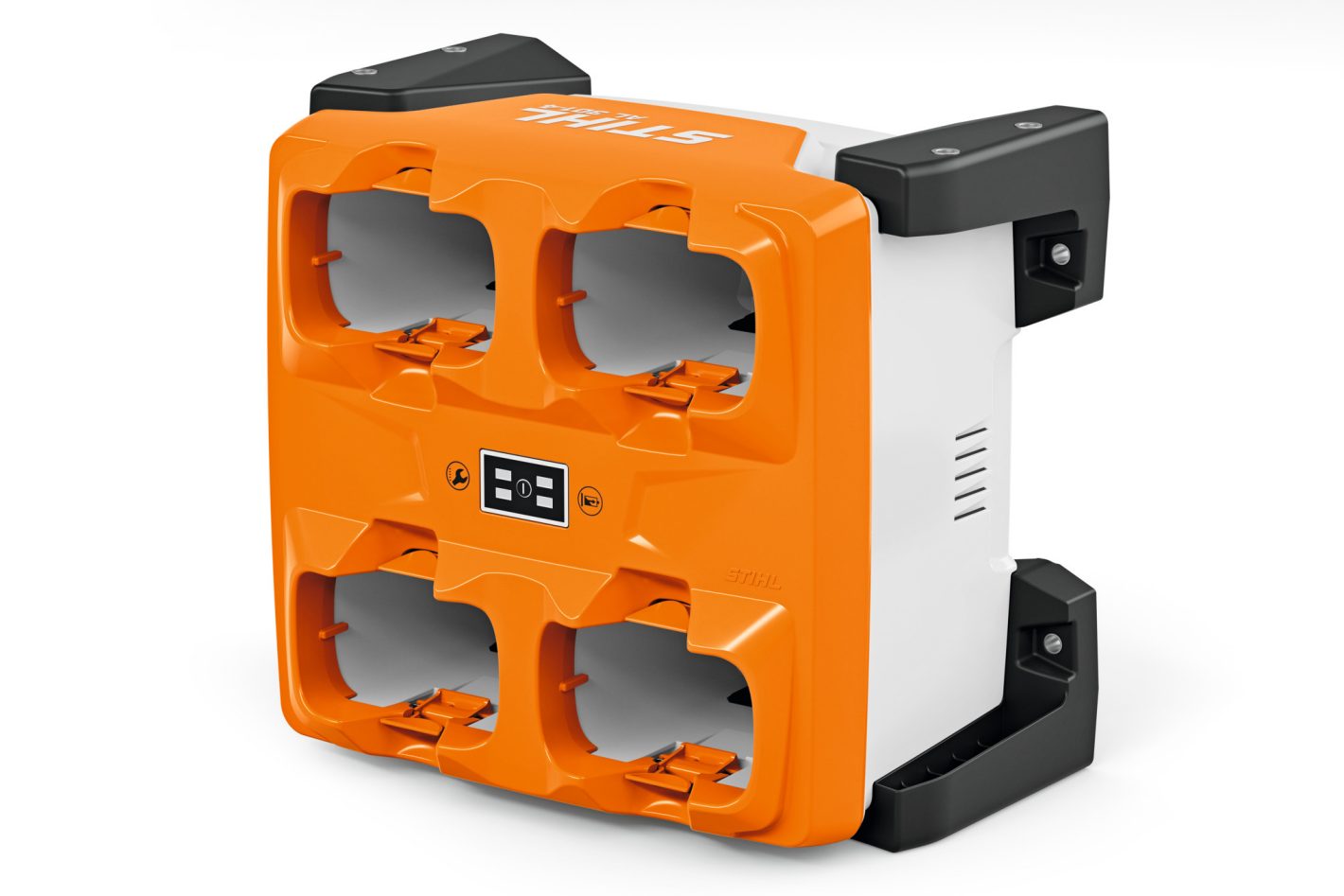

A built in cable tie with Velcro strap on the back means you can wind the cable to the charger to reduce its length. Plus, this charger can be secured to a wall, shelf, or permanently installed in a vehicle. The AL 301-4 can also be fitted to the CB 1 charging box.

  • AP System charge times (80/100%)
  • AP 20 battery 30 mins 50 mins
  • AP 200 S battery 40 mins 55 mins
  • AP 30 battery 60 mins 80 mins
  • AP 300 S battery 55 mins 80 mins
  • AP 500 S battery 70 mins 90 mins
  • AR 2000L battery 220 mins 290 mins
  • AR 3000L battery 330 mins 430 mins

Cannot be used with AK batteries.

  • Sequential charging of up to 4 batteries
  • Can be used in a vehicle, workshop or at home
  • Space-saving - can be lined up and stacked
  • View charge levels with the push of a button

Specifications

Power & Engine

Power Source Battery
Battery System Stihl Allpro/AP Systems

Drive & Control

Working Capacity

Cutting System

Air & Blowing

Pressure & Water

Robotic Technology

Compatibility & System

Dimensions & Weight

Weight 4.4kg
