Product Information

Description

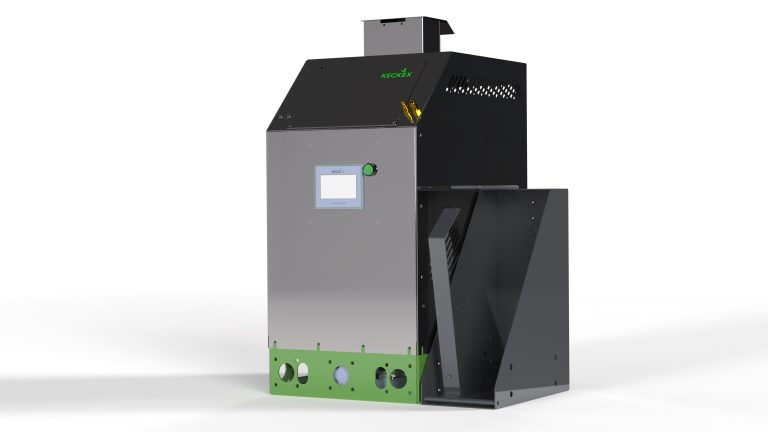

<p>The KECKEX WEEDEX M13 is the hot-water and steam generator supplied with the standard KOMEX-M13-500 system.</p>

<p>Its self-priming pump delivers approximately 12.5 litres per minute, while the 100kW heating system raises incoming water from approximately 10°C to more than 100°C in around 35 seconds. Operation is managed through a digital touch display with clear function symbols.</p>

<p>The generator is built into a powder-coated multifunction frame and protected by A2 stainless-steel cladding and chimney components. It is prepared for integration with KECKEX remote-control functions, warning horn, lighting and solenoid-valve controls.</p>

<p>A 20-litre fuel canister and holder are included. The generator can be operated using diesel, HVO or heating oil. Biodiesel should only be used following consultation with and approval from KECKEX.</p>

<p><strong>Compatibility:</strong> This 12V generator is intended for the standard KOMEX-M13-500 hot-water and steam configuration. The KOMEX-M13-500-HD uses the separate MULTISteam-HD generator, article KM-000-034, together with its high-pressure equipment.</p>

Specifications

Power & Engine

Power Source 12V DC electrical supply with liquid fuel heating
Rated Voltage 12V DC
Fuel Type Diesel, HVO or heating oil
Fuel Tank Capacity 20L
Battery Voltage 12V

Drive & Control

Working Capacity

Flow Rate 12.5L/min (nominal 13L/min)

Cutting System

Air & Blowing

Pressure & Water

Maximum Pressure 6.9 bar
Pump Type Self-priming water pump

Robotic Technology

Compatibility & System

Compatibility KECKEX KOMEX-M13-500 standard hot-water and steam configuration

Dimensions & Weight

Weight 125kg
