Product Information

Description

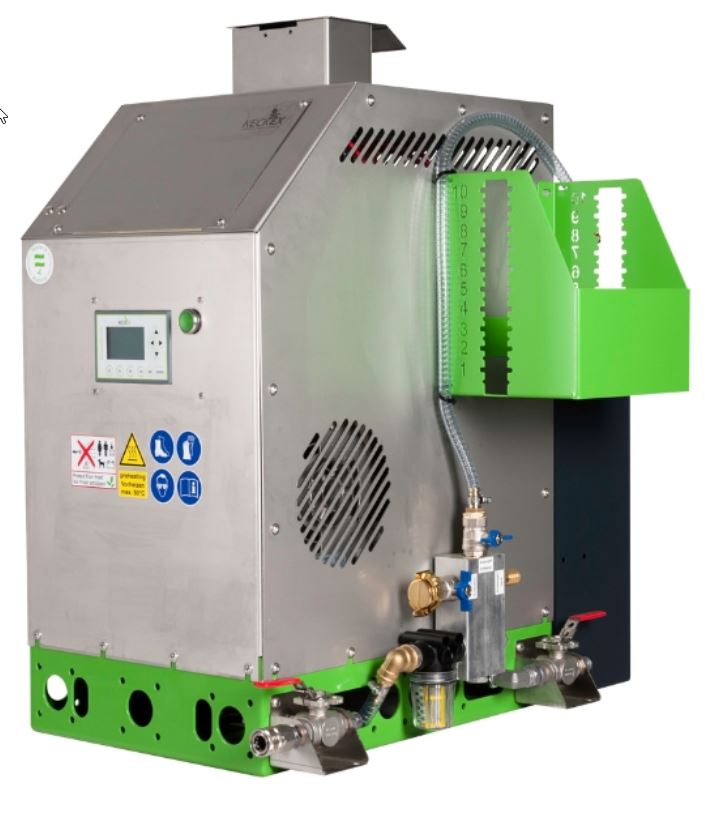

<p>The KECKEX WEEDEX M13 12V Hot Water & Steam Generator is the core treatment unit used in the KECKEX FLEX system. It heats water rapidly to produce the hot-water and steam output required for thermal weed control, chewing-gum removal and gentle outdoor cleaning.</p>

<p>A self-priming pump delivers 12.5L/min at up to 6.9 bar, while the 100kW heating system raises the water temperature from approximately 10°C to over 100°C in around 35 seconds.</p>

<p>The generator is included with both the standard FLEX and FLEX-HD configurations. On the FLEX-HD, a separate 48V lithium-powered high-pressure module must be added to provide the high-pressure cleaning capability; this 12V generator is not replaced.</p>

<h3>Key features</h3>

<ul>
  <li>12V electrical system</li>
  <li>100kW heating capacity</li>
  <li>Self-priming 12.5L/min water pump</li>
  <li>Maximum operating pressure of 6.9 bar</li>
  <li>Digital touch display with clear operating icons</li>
  <li>Stainless-steel A2 cladding and chimney</li>
  <li>Powder-coated multifunctional frame</li>
  <li>Supplied with a 20L fuel canister and holder</li>
  <li>Prepared for remote control, horn, lighting and solenoid-valve control</li>
  <li>Includes a three-way ball valve, machine guard and six-way water distributor</li>
</ul>

<p>This generator is supplied as part of the KECKEX FLEX system. Replacement units, installation and compatibility should be confirmed with Groundserv before ordering.</p>

Specifications

Power & Engine

Power Source 12V DC electrical supply with liquid fuel heating
Rated Voltage 12V DC
Fuel Type Diesel, HVO or heating oil
Fuel Tank Capacity 20L
Battery Voltage 12V

Drive & Control

Working Capacity

Flow Rate 12.5L/min

Cutting System

Air & Blowing

Pressure & Water

Maximum Pressure 6.9 bar
Pump Type Self-priming water pump

Robotic Technology

Compatibility & System

Compatibility KECKEX FLEX and FLEX-HD systems

Dimensions & Weight

Weight 125kg

Operator Information

Safety & Protection

Product Details

Product Downloads
