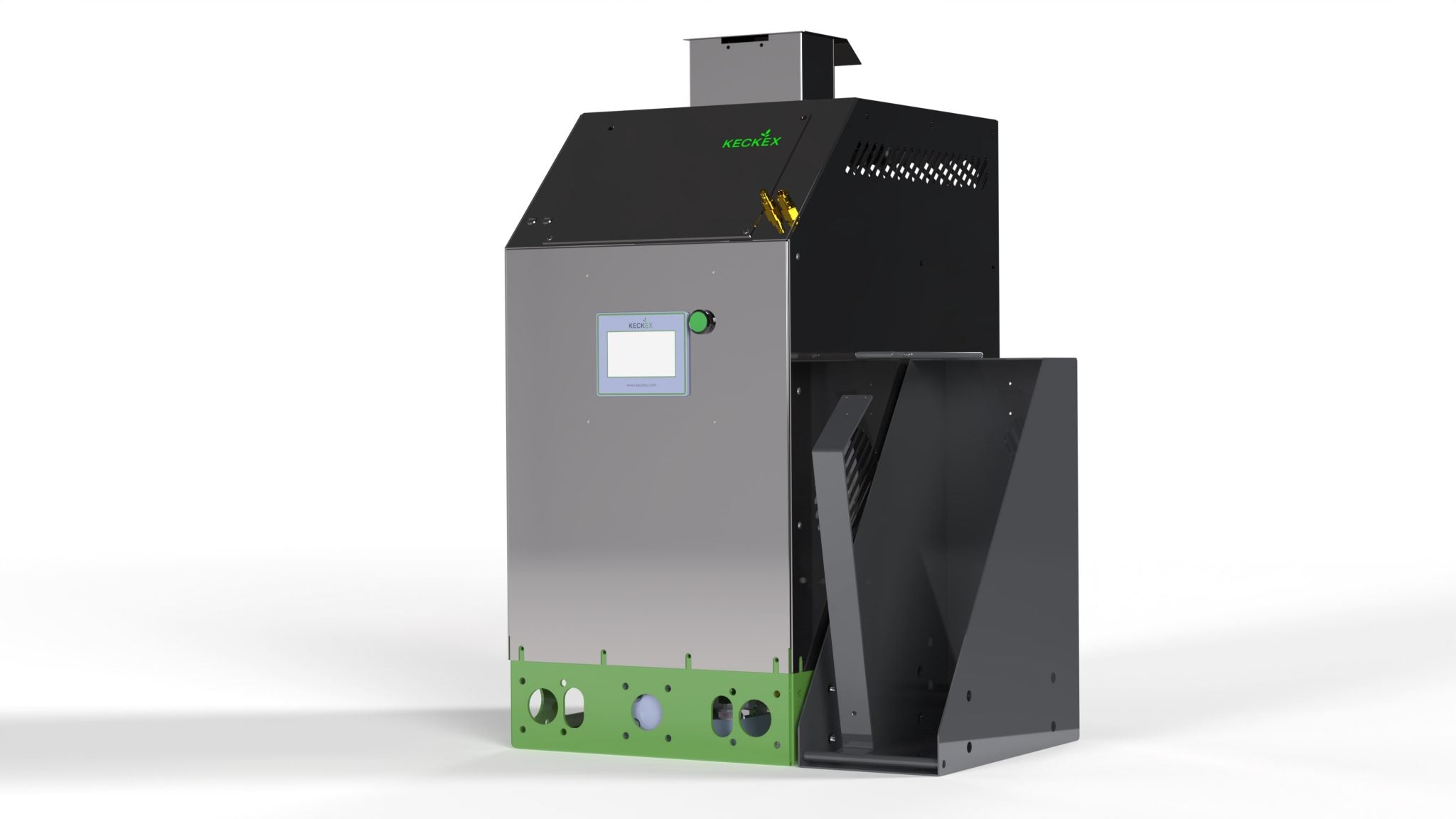

KECKEX M13-HD Hot Water & Steam Generator
The hot-water and steam generator specified for the KECKEX JESPI M13 HD build. It provides 100kW heating and a self-priming 12.5L/min pump; separate 48V high-pressure equipment produces the system’s high-pressure output.
Ask a question about this product
Need advice?
Get in touch and we'll be happy to help
Email
Call Customer Service on
Product Information
Description
The KECKEX MULTISteam-HD is the hot-water and steam generator specified when a compatible JESPI M13 is built with the 48V lithium high-pressure system.
Its 100kW heating system raises incoming water from 10°C to over 100°C in approximately 35 seconds. The integrated self-priming pump supplies 12.5L/min at up to 6.9bar.
The generator does not produce the system’s high-pressure output on its own. The separate 48V high-pressure pump equipment and required battery-and-charger package complete the HD system.
Specifications
Power & Engine
Power Source
48V DC electrical system with liquid-fuel heating
Rated Voltage
48V DC; 12V auxiliary fan/diesel-pump circuit
Fuel Type
Diesel, HVO or heating oil
Fuel Tank Capacity
20L canister with holder included
Drive & Control
Working Capacity
Flow Rate
12.5L/min (nominal 13L/min)
Cutting System
Air & Blowing
Pressure & Water
Pump Type
Self-priming water pump
Water Supply Type
Supplied by the compatible KECKEX water system
Robotic Technology
Compatibility & System
Compatibility
KECKEX JESPI M13 HD and compatible M13 48V high-pressure configurations
Dimensions & Weight
Weight
14kg
