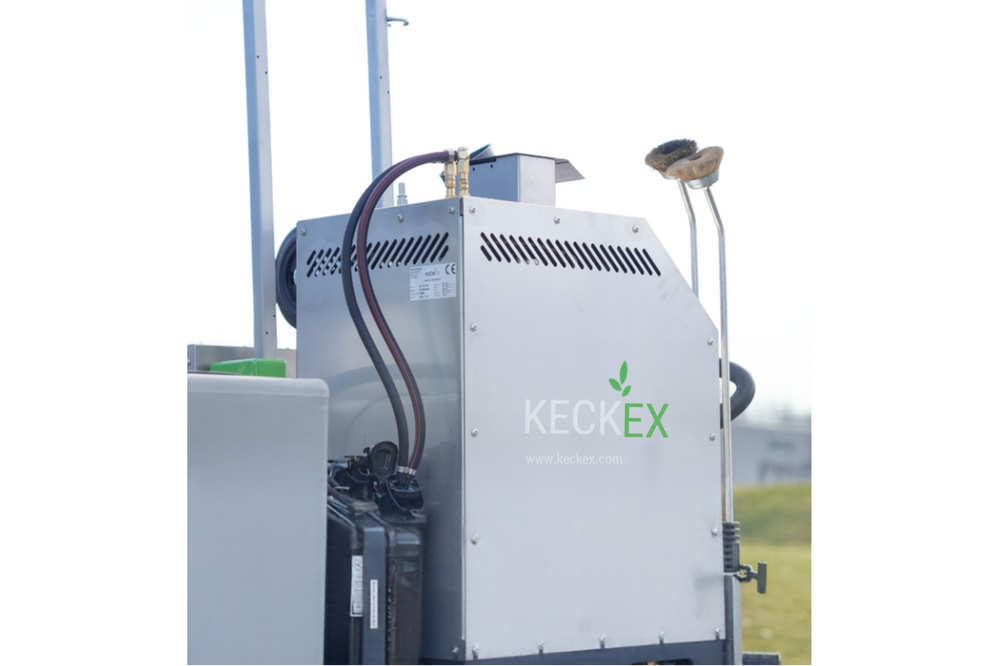

500 litres of onboard water
An integrated 500-litre supply supports work away from a fixed water connection, with the option to draw from a suitable external tank when required.

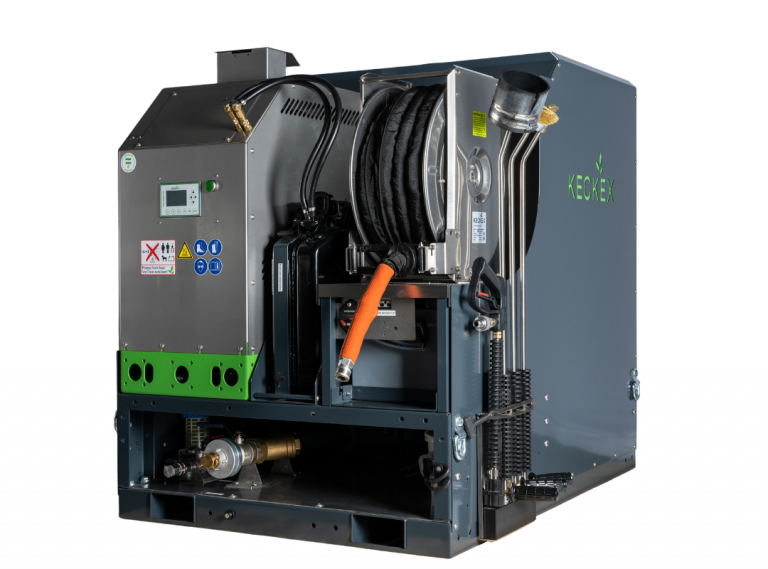

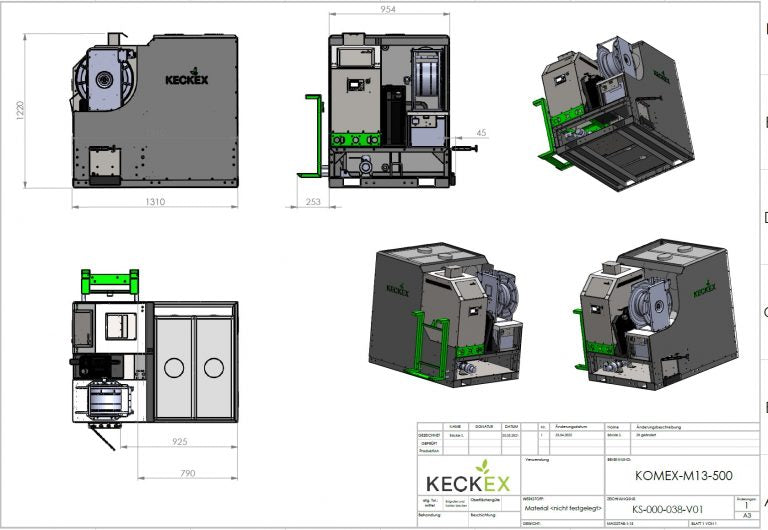

KECKEX KOMEX-M13-500 Vehicle-Mounted System
Compact vehicle-mounted system with 500-litre onboard water capacity, battery-powered hot-water and steam operation, and an optional 48V high-pressure configuration.
System Configuration
Ask a question about this product
Need advice?
Get in touch and we'll be happy to help
Email
Call Customer Service on
KECKEX MODULAR SYSTEM
Configured around the work you need to do
SELECTED SYSTEM
KOMEX-M13-500-HD
Applications
- High-pressure surface cleaning
- Gentle low-pressure cleaning
- Chemical-free thermal weed control
- Chewing gum removal
- Thermal treatment of invasive plants
- Plant watering with optional equipment
- Cleaning road signs and outdoor infrastructure
- Disinfection applications with a compatible setup
- Hot-water and steam cleaning
- Specialist ant treatment
Best suited to
- Pickups, flatbeds, municipal vehicles and compatible tractors
- Local authorities and municipal grounds teams
- Contractors covering multiple or dispersed sites
- Estates, campuses and facilities teams
- Parks, cemeteries, schools and sports facilities
- Operators requiring an onboard water supply
Features

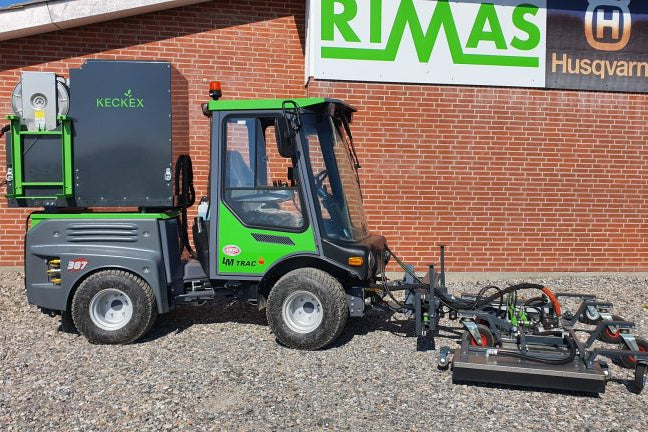

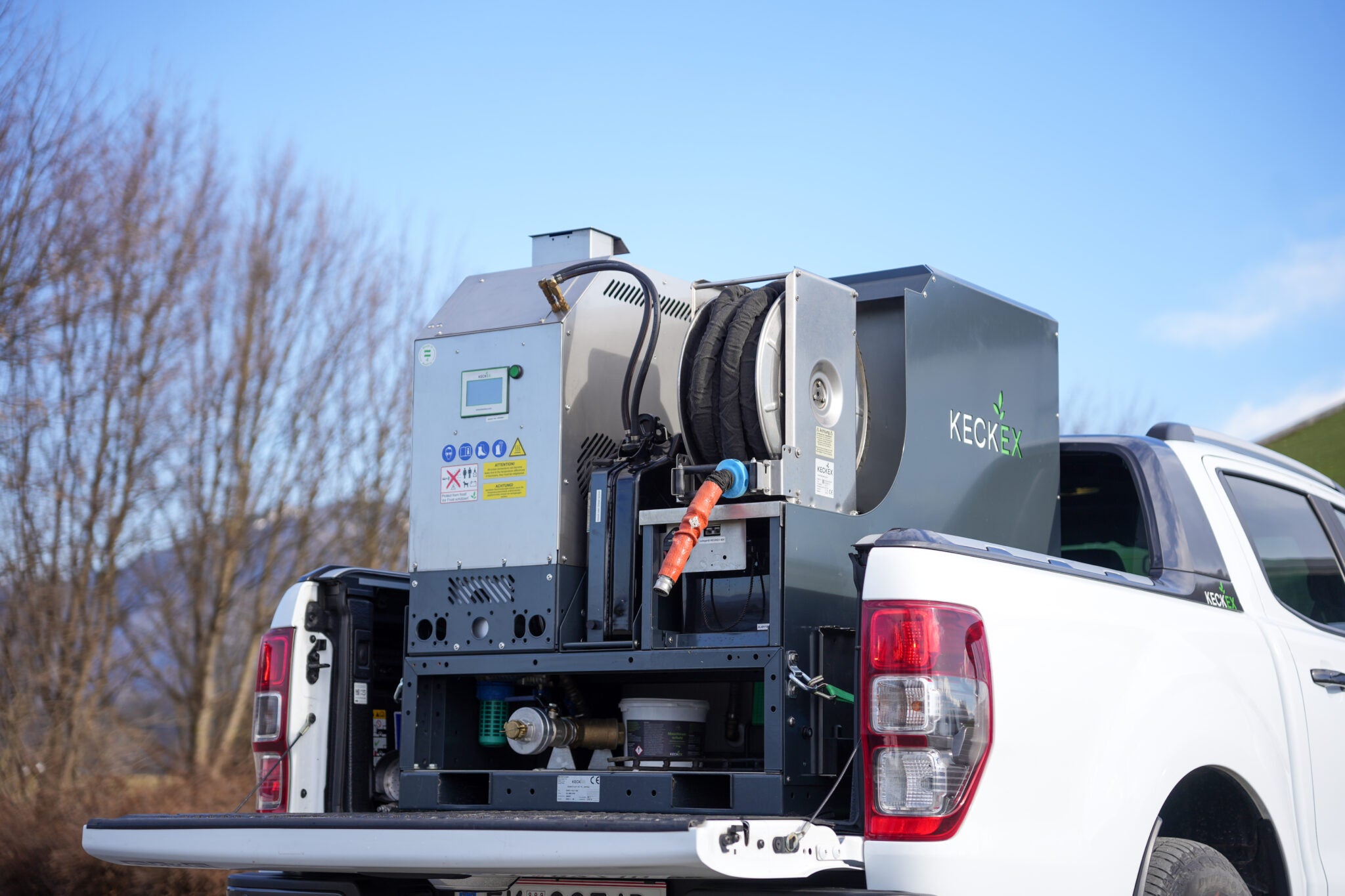

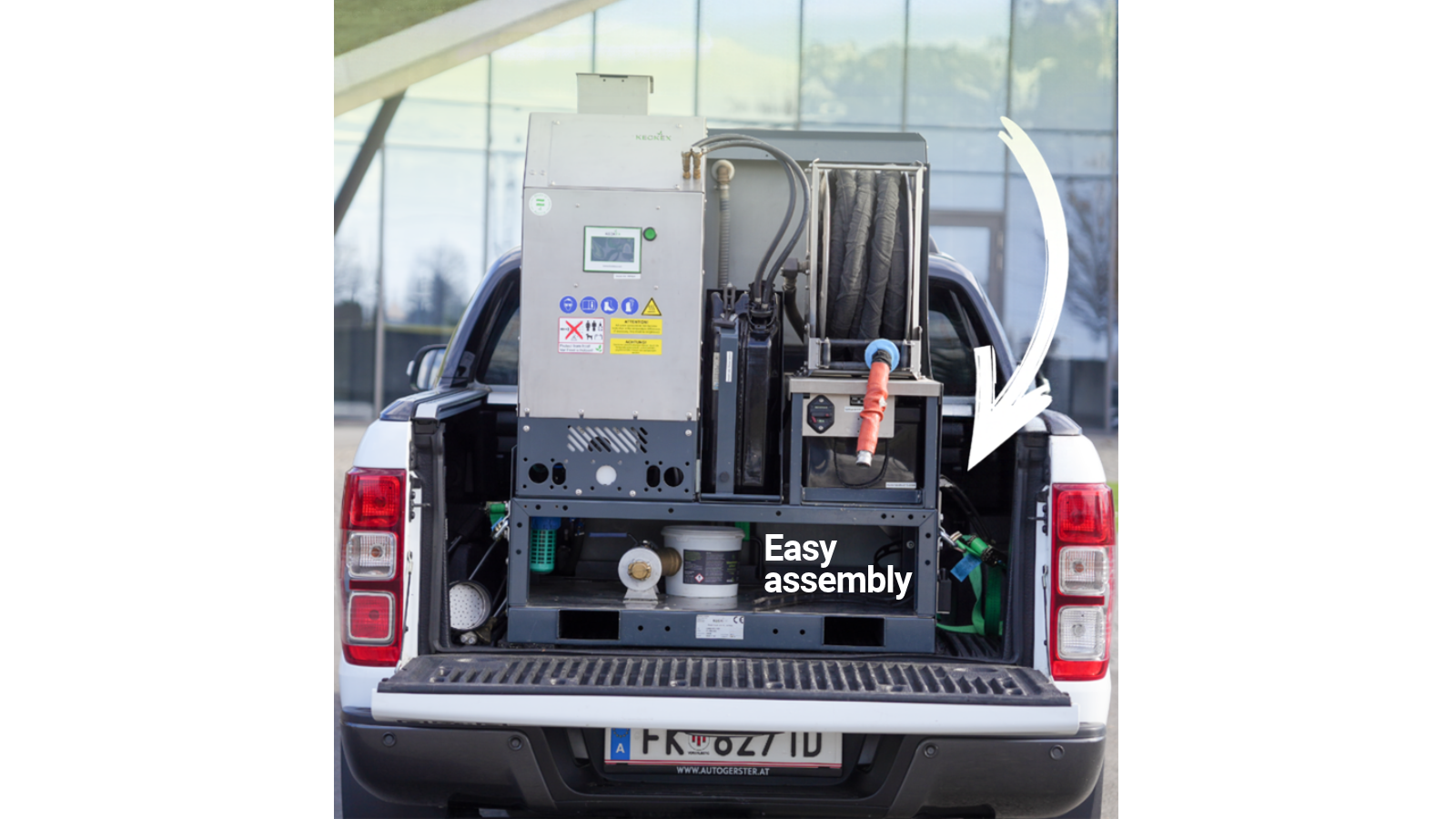

Built for vehicle-based working

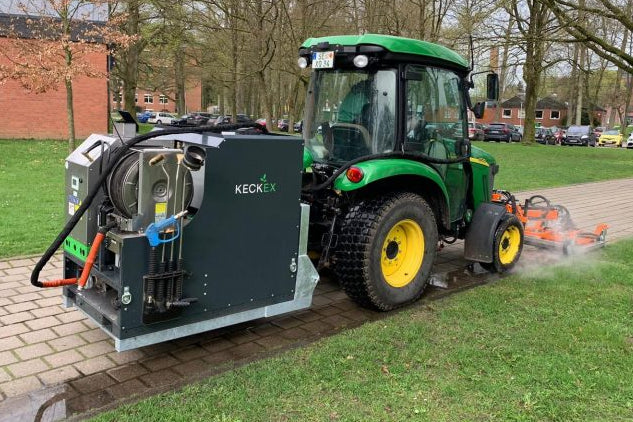

The compact system can be carried on suitable pickups, flatbeds, municipal vehicles and other carrier platforms, with forklift-compatible handling.

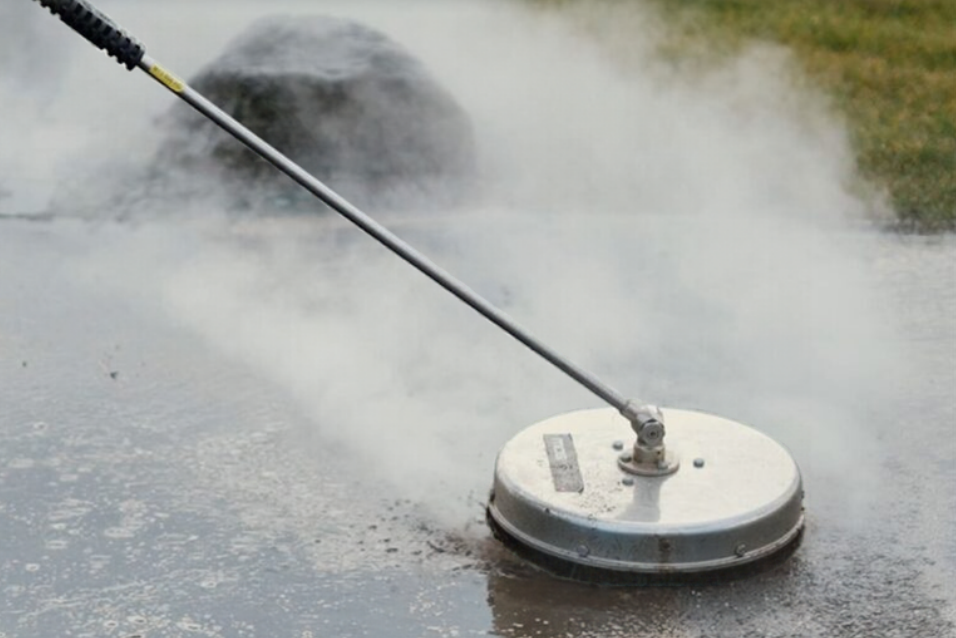

Hot water and steam up to 130°C
Water temperatures from 100–130°C support thermal weed treatment, chewing-gum removal and specialist outdoor cleaning with the appropriate attachment.

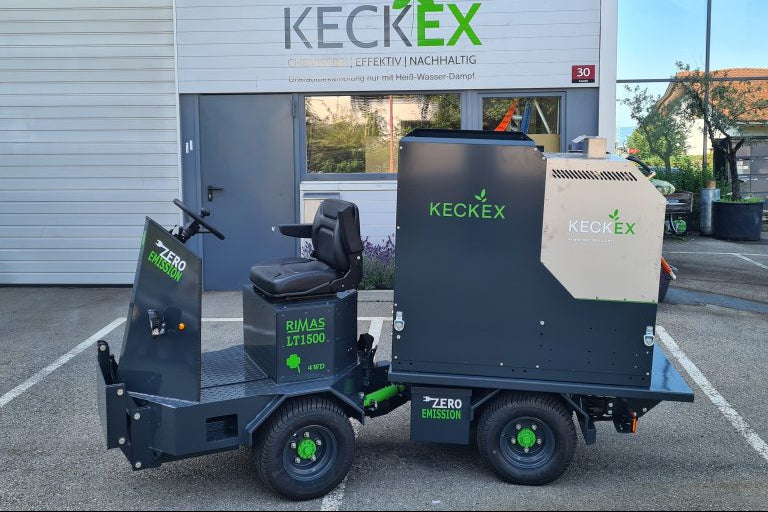

Battery-powered professional operation

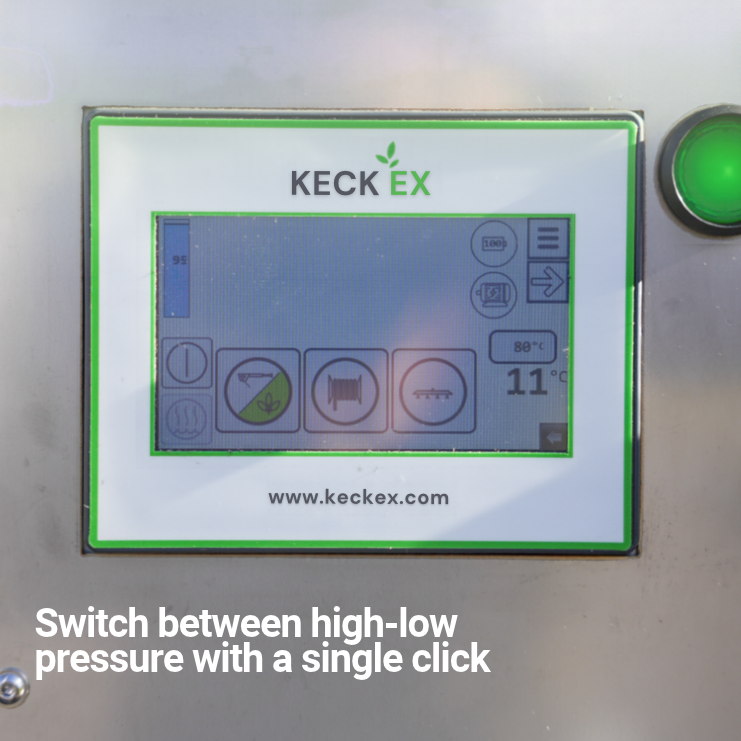

The 12V base system provides up to eight hours of operation, with digital controls and noise output below 79dB.

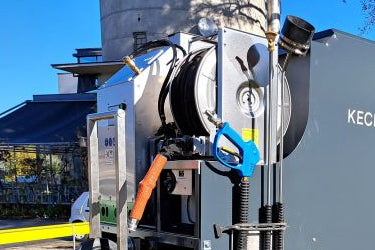

Automatic hose reel and modular tools
A 15m insulated hot-water hose and detachable hand-lance equipment support different surfaces, treatment widths and working conditions.
Optional 48V high-pressure performance
The HD configuration adds lithium-powered pressure of up to 100 bar at 13 litres per minute for intensive cleaning and specialist applications.
YOUR KOMEX M13-HD PACKAGE
What’s included with KOMEX M13-HD
These are the principal components included in the Groundserv KOMEX M13-HD configuration. Select a component to see further information.
INCLUDED WITH
KOMEX M13-HD

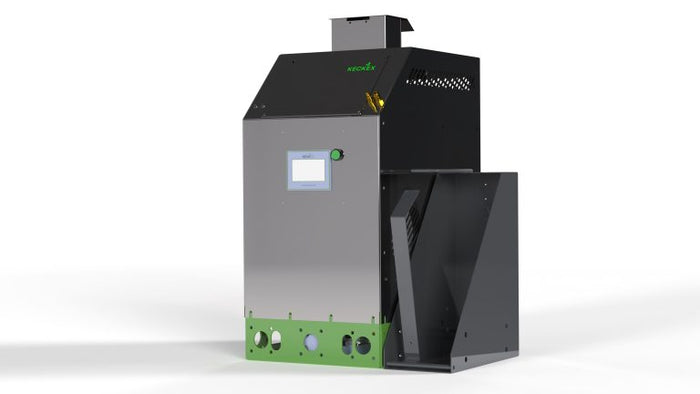

KECKEX MULTISteam-HD 48–12V Hot-Water & Steam Generator
48V MULTISteam-HD hot-water and steam generator supplied with the KOMEX-M13-500-HD, delivering approximately 13L/min with digital control and 100kW heating output.
Included as standard
Qty
INCLUDED WITH
KOMEX M13-HD
KECKEX ACES 48V Battery & 5kW Charger
Required 48V LiFePO4 battery and 5kW charger set for the high-pressure function on compatible KECKEX M13 HD systems.
Included as standard
Qty
INCLUDED WITH
KOMEX M13-HD

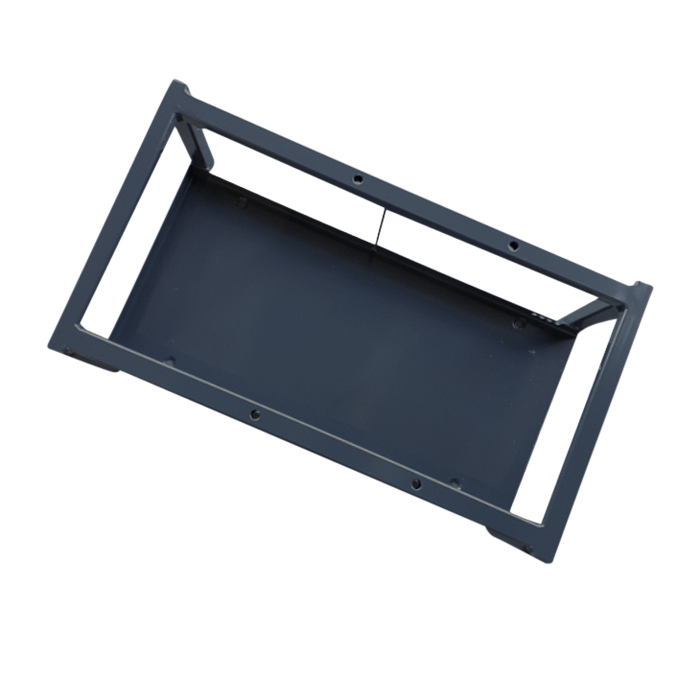

KECKEX Battery Compartment with Cover
Covered battery compartment for securely housing the standard 12V supply battery on compatible KECKEX frame-mounted systems. Supplied as standard with the KECKEX FLEX and...
Included as standard
Qty
INCLUDED WITH
KOMEX M13-HD

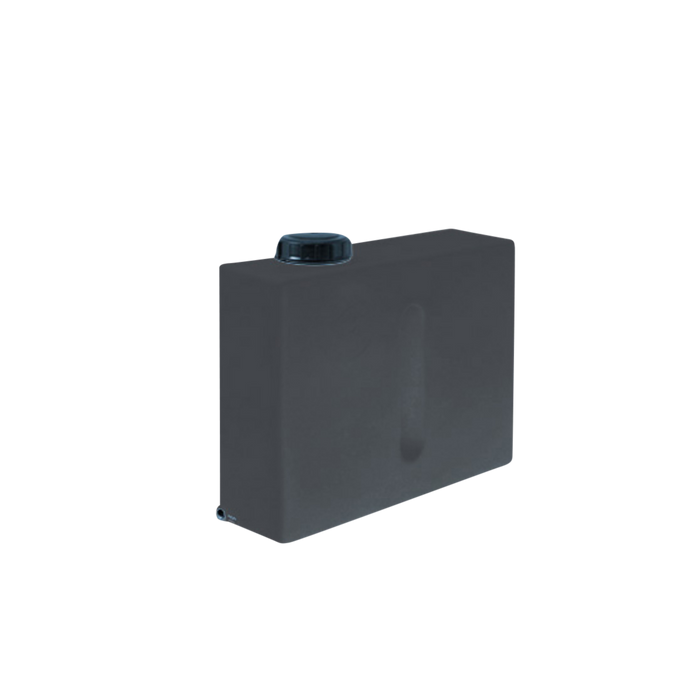

KECKEX KOMEX-M13-500 Front Water Tank – 250L
Upright 250L front water tank for the KOMEX-M13-500 system, finished in traffic grey and forming part of the system’s combined 500L capacity.
Included as standard
Qty
INCLUDED WITH
KOMEX M13-HD
KECKEX KOMEX-M13-500 Rear Water Tank – 250L
Upright 250L rear water tank for the KOMEX-M13-500 system, finished in traffic grey and forming part of the system’s combined 500L capacity.
Included as standard
Qty
INCLUDED WITH
KOMEX M13-HD
KECKEX Automatic Hose Reel with 15m Insulated HW Hose
Automatic stainless-steel hose reel supplied with a 15m insulated KECKEX hot-water and steam hose for safe, organised professional operation.
Included as standard
Qty
INCLUDED WITH
KOMEX M13-HD

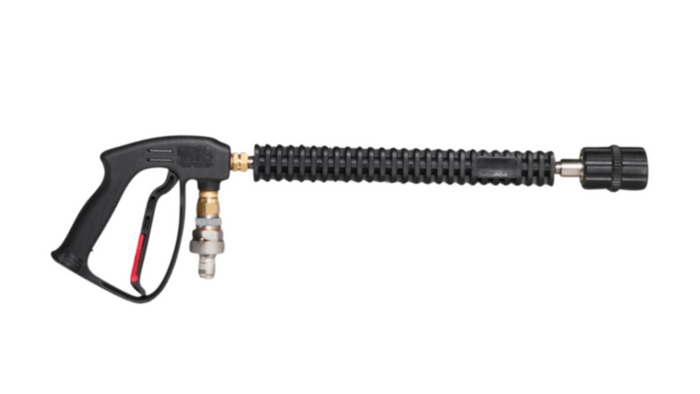

KECKEX KHL-P Lance Pistol Grip
Hand-operated pistol grip with quick coupling for connecting compatible KECKEX hot-water, steam and low-pressure treatment lances to the FLEX system, including the KHL-D nozzle...
Included as standard
Qty
INCLUDED WITH
KOMEX M13-HD
KECKEX High-Pressure Ball Nozzle Lance – 15°050 / 25°100
High-pressure ball-nozzle lance with 15°050 / 25°100 nozzle specification, supplied as standard with the KECKEX MOBI and JESPI-HD systems.
Included as standard
Qty
INCLUDED WITH
KOMEX M13-HD

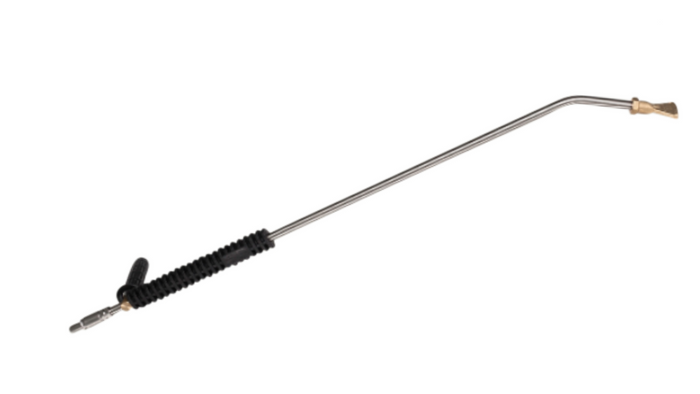

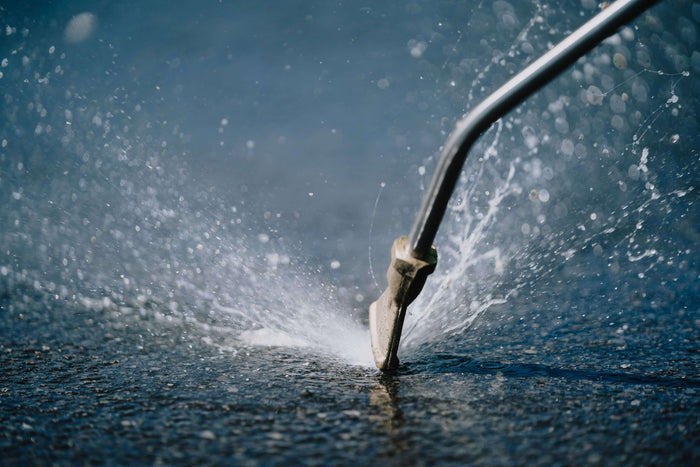

KECKEX KHL-D Brass Nozzle Lance
Targeted hot-water and steam lance with a robust brass nozzle for treating individual weeds, awkward areas and other locations requiring precise application. Connects to...
Included as standard
Qty
INCLUDED WITH
KOMEX M13-HD
KECKEX 10cm Cylinder Lance
Compact 10cm cylinder lance for targeted thermal weed treatment, designed to distribute hot water evenly and retain treatment temperature around smaller areas.
Included as standard
Qty
INCLUDED WITH
KOMEX M13-HD
KECKEX 4-Way Straight Lance Holder
Robust straight holder for one KECKEX pistol grip and three lances, with rubber tensioners to secure and protect the equipment during transport.
Included as standard
Qty
INCLUDED WITH
KOMEX M13-HD
KECKEX Mounting Kit for Four-Fold Lance Holder – KOMEX-M13-500
Model-specific mounting kit for fitting the KECKEX ZH-000-027 four-fold lance holder to standard and HD KOMEX-M13-500 systems.
Included as standard
Qty
Also included in the base machine
- Forklift-compatible compact carrier frame
- 500-litre onboard water capacity
- Ability to draw water from a suitable external tank

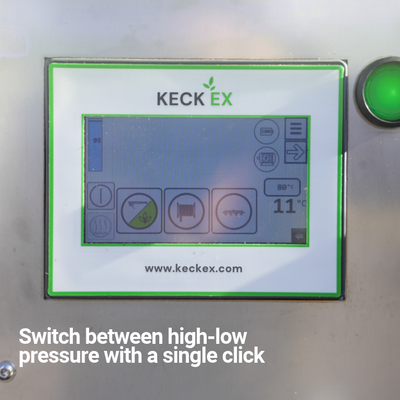

- Digital operating panel and control system
- Quick-change system for 20L metal fuel canisters
- 11–13L/min self-priming water pump
- 48V lithium-powered high-pressure module, delivering up to 100 bar at 13L/min
ADAPT THE SYSTEM
Optional extras for KOMEX M13-HD
Add equipment to suit the applications, surfaces and working conditions on your site. Groundserv will confirm compatibility and the complete specification as part of your quotation.
OPTIONAL
EXTRA
KECKEX 300mm High-Pressure Surface Cleaner
Compact 300mm high-pressure surface cleaner with ARS23 coupling for efficient cleaning of hard surfaces. Listed by KECKEX as an optional attachment for the MOBI...
Uses the included RL22 lance pistol grip.
Qty
OPTIONAL
EXTRA
KECKEX 50cm Surface Area Application Unit
The 50cm wide surface tool is suitable for manually processing large areas such as gravel or paving stones.
Qty
OPTIONAL
EXTRA
KECKEX 70cm Surface Area Application Unit
Hand-guided 70cm surface unit for efficient thermal weed treatment across larger paved and gravel areas, with potential coverage of up to 400–500m² per hour.
Qty
OPTIONAL
EXTRA
KECKEX 8cm Brass Brush Lance
Robust 8cm brass brush lance for intensive cleaning of hard, scratch-resistant surfaces and targeted removal of chewing gum, moss and stubborn deposits.
Qty
OPTIONAL
EXTRA
KECKEX 8cm Fibre Brush Lance
Gentle 8cm fibre brush lance for cleaning scratch-sensitive surfaces including signs, bins, painted finishes, metal and plastics using KECKEX hot water and steam.
Qty
OPTIONAL
EXTRA

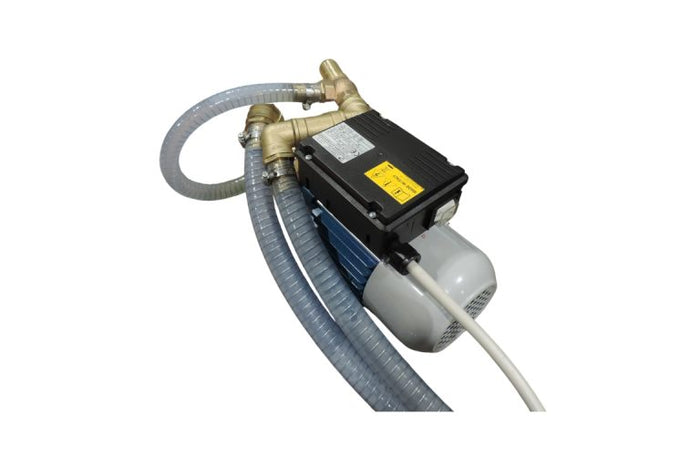

KECKEX 12V Watering Pump with Hoses
12V auxiliary pump and hose assembly adding a dedicated watering function to compatible KOMEX-M13-500 systems.
Qty
OPTIONAL
EXTRA
KECKEX Holder for Hand-Operated Surface Units
Holder for carrying a compatible KECKEX 50cm or 70cm hand-operated surface application unit securely on the system frame.
Requires the ZA-000-085 mounting kit, which will be added automatically.
Qty
OPTIONAL
EXTRA

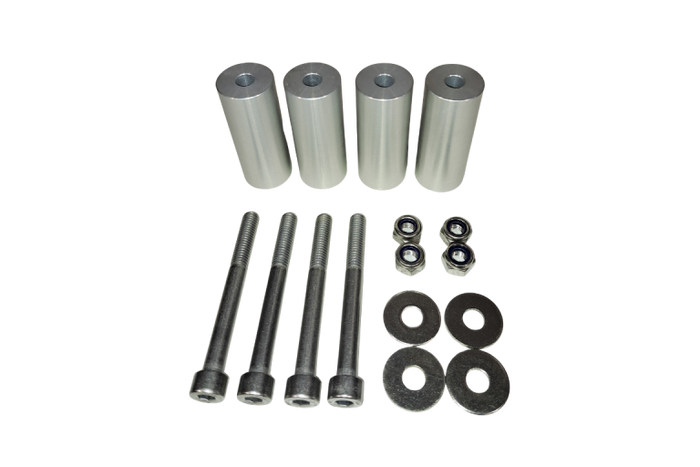

KECKEX ZH-000-023 Surface Device Holder Mounting Kit
Required fitting kit for mounting the ZH-000-023 surface-device holder onto standard and HD KOMEX-M13-500 systems.
Required when fitting the ZH-000-023 holder to this system.
Qty
OPTIONAL
EXTRA

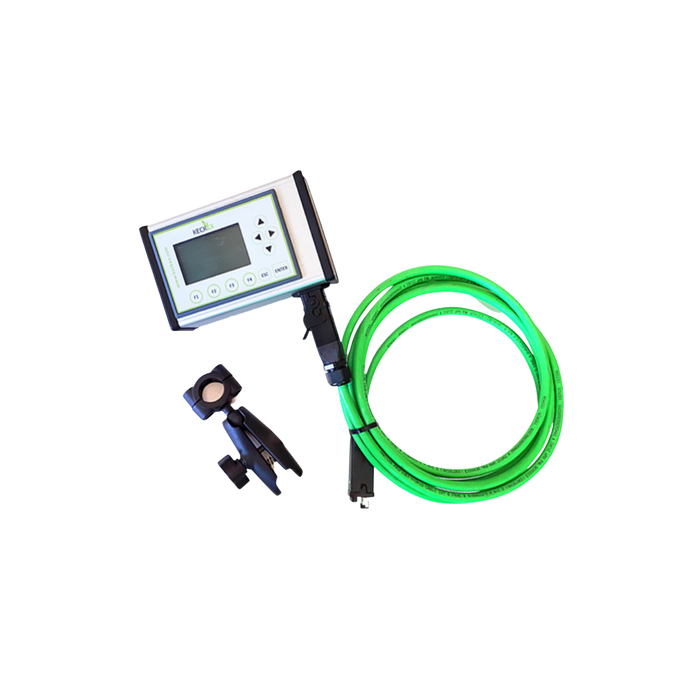

KECKEX Remote Control for WEEDEX-M13 & M20 – 2m Cable
Wired remote control for monitoring and operating compatible KECKEX WEEDEX-M13 and M20 systems from inside the carrier vehicle.
Qty
OPTIONAL
EXTRA

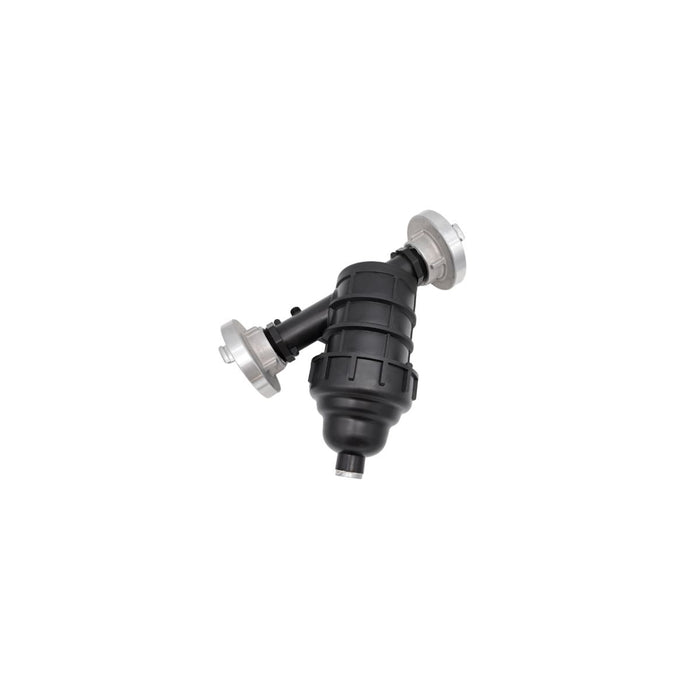

KECKEX Machine Protection Inlet Adapter with C-Coupling
C-coupling inlet adapter for automatically flushing KECKEX machine-protection powder into the water tank as it is filled.
Machine-protection agent is required for use and supplied separately.
Qty
OPTIONAL
EXTRA

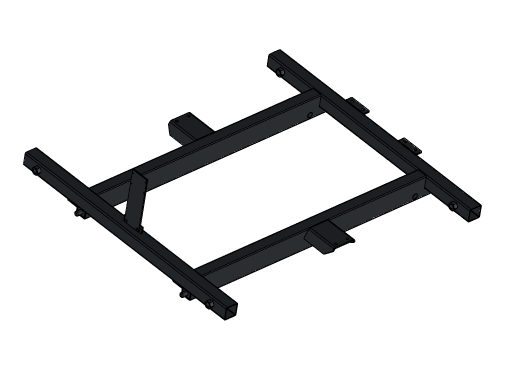

KECKEX HOLDER B55 Adapter Frame for KOMEX-M13-500
Vehicle-specific adapter frame for mounting the KOMEX-M13-500 system onto a compatible HOLDER B55 carrier.
Carrier-specific option — Groundserv will confirm suitability.
Qty
OPTIONAL
EXTRA
KECKEX HOLDER M480 Adapter Frame for KOMEX-M13-500
Vehicle-specific adapter frame for mounting the KOMEX-M13-500 system onto a compatible HOLDER M480 carrier.
Carrier-specific option — Groundserv will confirm suitability.
Qty
OPTIONAL
EXTRA

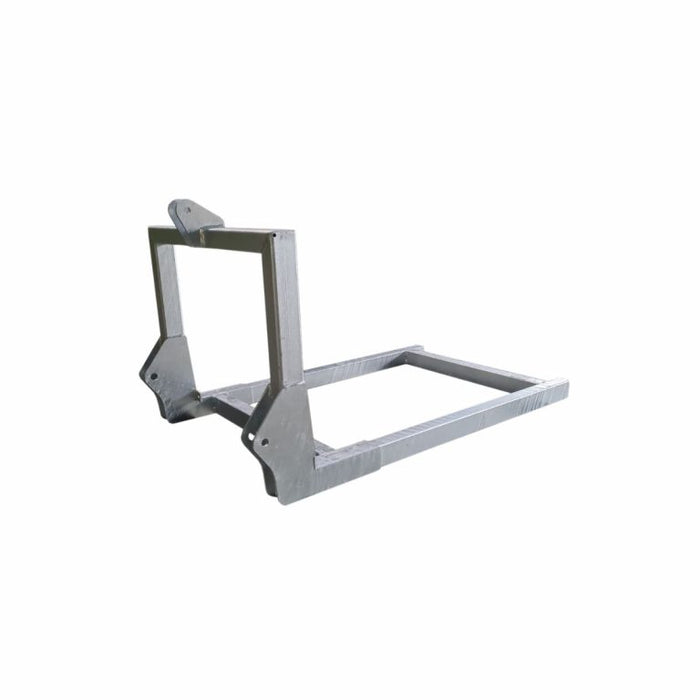

KECKEX Category 1–2 Three-Point Linkage for KOMEX-M13-500
Galvanised-steel mounting frame for carrying the KOMEX-M13-500 system on a compatible Category 1 or Category 2 tractor three-point linkage.
Carrier-specific option — Groundserv will confirm final compatibility.
Qty
OPTIONAL
EXTRA

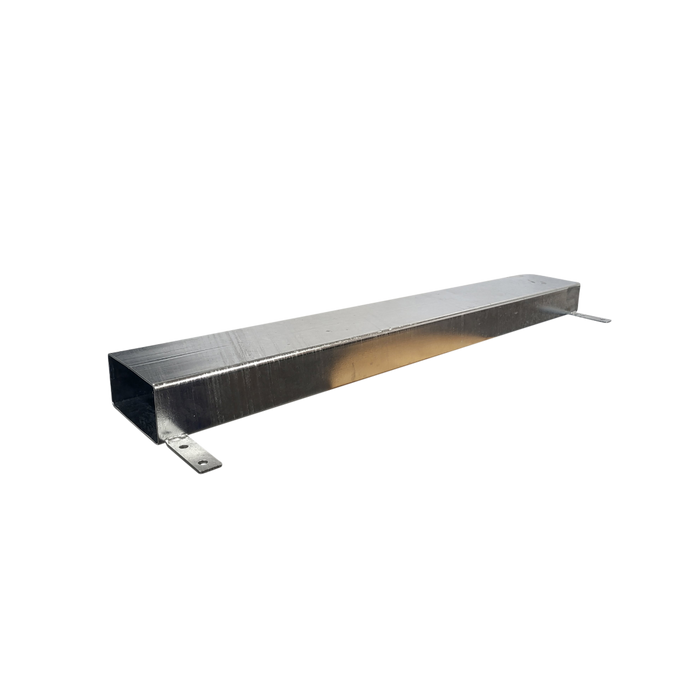

KECKEX KSR-500 Forklift Entry Tubes – 190 × 90mm
Heavy-duty 190 × 90mm entry tubes providing fork access for moving and positioning the KECKEX KSR-500 base unit.
Handling option — Groundserv will confirm the installation requirements.
Qty
Product Information
Description
<p>The KECKEX KOMEX-M13-500 is a compact, vehicle-mounted hot-water and steam system for professional outdoor maintenance. Its integrated 500-litre water supply allows teams to work independently across dispersed or remote sites, while the self-priming pump can also draw from a suitable external water source.</p>
<p>The system is designed for transport on pickups, flatbed vehicles, municipal carriers, electric vehicles and other suitable platforms. A forklift-compatible base makes loading and moving the unit straightforward, while optional mounting arrangements allow it to be configured around the carrier vehicle and working environment.</p>
<p>Choose between two configurations:</p>
<ul>
<li><strong>KOMEX-M13-500:</strong> hot-water and steam operation for thermal weed treatment, outdoor cleaning, chewing-gum removal and other low-pressure applications.</li>
<li><strong>KOMEX-M13-500-HD:</strong> adds a 48V lithium-powered high-pressure module, delivering up to 100 bar at 13 litres per minute for more intensive cleaning and specialist applications.</li>
</ul>
<p>The base system uses a 12V battery supply and digital controls, with water temperatures from 100–130°C depending on the attachment being used. A 15m insulated hot-water hose, automatic hose reel and detachable hand-lance equipment form part of the standard working package.</p>
<p>Compatible lances, surface treatment units, watering equipment, remote control and vehicle-mounting arrangements can be selected to suit the intended work.</p>
<p>Groundserv can assess your carrier vehicle, working areas and required applications before preparing a complete compatible specification and quotation.</p>
Specifications
Power & Engine
Power Source
12V battery-powered base system with liquid-fuel water heating; HD version adds a 48V lithium high-pressure system
Rated Voltage
12V DC; HD high-pressure module: 48V
Fuel Type
Biofuel-compatible liquid fuel
Fuel Tank Capacity
20L quick-change metal canister system
Battery Capacity
260Ah base power supply (HD: separate ACES battery for high-pressure operation)
Maximum Battery Work Time
ase system: up to 8 hours; HD: approx. 1.5 hours at 100 bar/13L/min, over 2.5 hours at 50 bar/13L/min, and over 10 hours for low-pressure applications
Drive & Control
Operation
Self Propelled
Wheels
Pneumatic tyres
Transport Configuration
Forklift-compatible vehicle-mounted system for suitable cargo areas, pickups, municipal vehicles and tractors
Working Capacity
Maximum Gradient
25% (14°)
Flow Rate
Low pressure: 11–13L/min; High pressure (HD): up to 13L/min
Cutting System
Air & Blowing
Pressure & Water
Operating Pressure
Application dependent; adjustable up to 100bar
Maximum Pressure
HD configuration: up to 100 bar
Pump Type
Self-priming water pump
Water Supply Type
Integrated 500L supply or suction from a suitable external water tank
Hose
15m insulated as standard, longer lengths available
Water Tank Capacity
500L
Robotic Technology
Compatibility & System
Dimensions & Weight
Length
131cm
Width
96cm
Height
122cm
Weight
Min 410kg dry
Operator Information
Noise Level
<79dB
Safety & Protection
Product Details
