Features

Outboard Drive Wheels

Outboard Drive Wheels

Outboard drive wheels reduce centre-wheel slip and help protect the tines when loading over ramps.

Single Bolt Tine Fastener

Single Bolt Tine Fastener

A single-bolt fastener simplifies tine replacement and routine servicing.

Tine Engagement and Lift N Lock™ Disengagement

Tine Engagement and Lift N Lock™ Disengagement

Lift N Lock™ lets the operator disengage the tines by lifting the handle.

Easy to Store and Service

Easy to Store and Service

Fold-n-Go™ handles fold without tools, and the tilt-up frame provides quick access for maintenance and compact transport.

Water Tank

Water Tank

A proprietary tank positioned directly above the tines eliminates bulky side weights and helps maintain consistent aeration depth.

Product Information

Description

Fold-n-Go™ handles and tilt-up access make transport and routine servicing quick and easy.

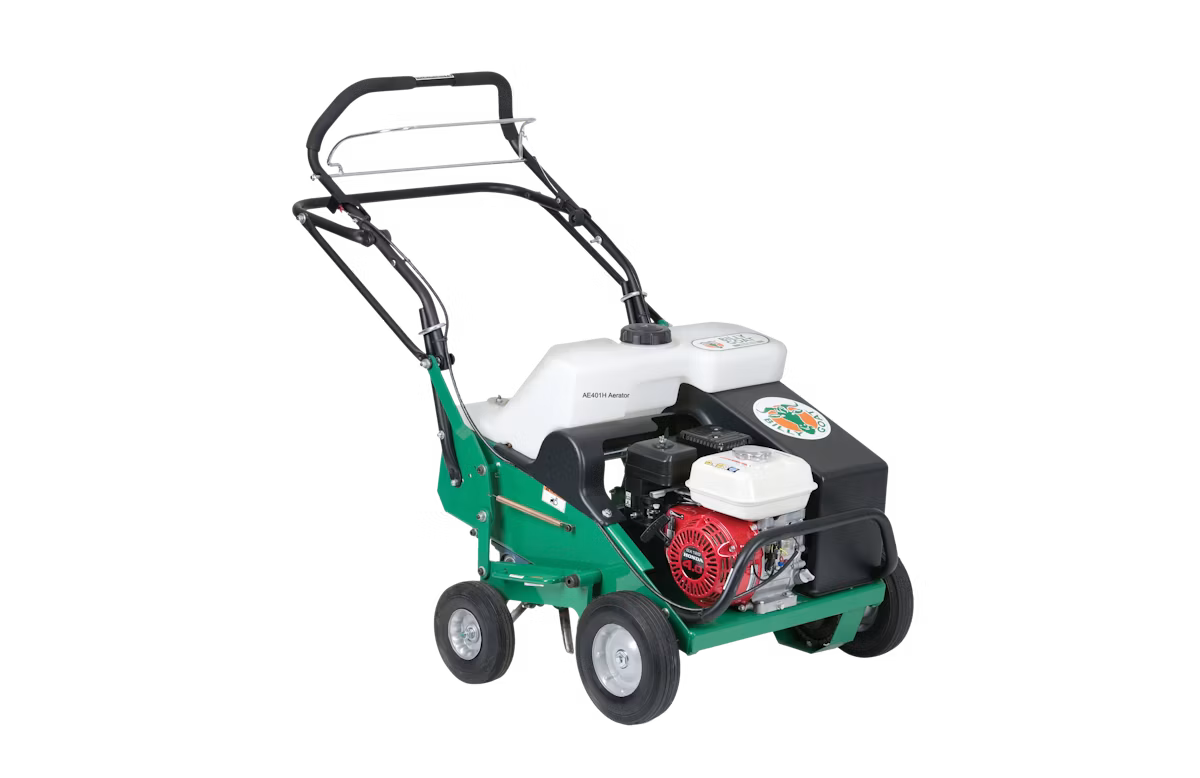

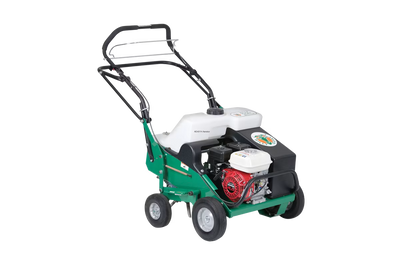

The Billy Goat AE401H is a 48cm mechanical aerator engineered to avoid the vibration, wear, and awkward drum-filling associated with traditional centre-drum machines.

Specifications

Power & Engine

Power Source Petrol
Engine Brand Honda
Engine Model GX120
Power Output 2.4kW (3.2hp)
Engine Capacity 118cc
Fuel Type Petrol
Start Type Recoil

Drive & Control

Operation Self Propelled
Transmission Type Chain Drive
Traction Control Outboard drive wheels to prevent centre slip
Wheels Semi-Pneumatic

Working Capacity

Working Width 48cm (19")
Working Depth Up to 7cm (2.75")
Maximum Area Coverage Up to 1,765m²/h (19,000sq ft/h)

Cutting System

Cutting Points 24 hollow coring tines; 12cm × 18cm pattern

Air & Blowing

Pressure & Water

Water Tank Capacity 23L

Robotic Technology

Compatibility & System

Dimensions & Weight

Length 145cm
Width 74cm
Height 133cm
Weight 110kg

Operator Information

Handle Type Folding

Safety & Protection

Product Details

Warranty 1 Year
